一、R3JK-DU50 / DU100A3系列Hot New扩散反射型 光电开关(AC)
●Special design of protective hood for dust-proof / 專用防塵蓋設計With special protective hood for dust-proof, it can avoid the breakdown caused by dust or spray. |
●Sensitivity adjuster / 可調式旋鈕
Users can adjust the sensitivity more optimum according to ifferent situations. |
●Non-spherical optical lens / 非球面光學鏡片
For a better focusing, with the exceptional optical lens. |
●Dual LED indicator / 雙LED指示燈
Visible dual LED makes you easy to know the current operating situation.  |
●Import high switching capability relay. / 進口高容量Relay.
Import relay is with 0.2 Sec. delay function and can be switched L.on/D.on directly. |
|
|
Model / 型号
|
R3JK-DU100A3
|
R3JK-R5A3
|
R3JK-10A3
|
|
R3JK-DU50A3
|
R3JK-30A3
|
|
Sensing type / 检出方式
|
Diffuse reflection / 扩散反射式
|
Retroreflective / 镜片反射式
|
Through beam / 对照式
|
|
Sensing distance / 检出距离
|
50 cm / 100cm
|
5M
|
10M / 30M
|
|
Emitting light / 发光源
|
Infrared LED 850 nm / Infrared LED 940 nm
|
Infrared LED 940 nm
|
Infrared LED 850 nm
|
|
Operating voltage / 工作电压
|
AC90 ~ 260V DC20~30V
|
|
Current Consumption / 消耗电流
|
25 mA Max.
|
|
Load current / 负载电流
|
Relay：DC30V 5A/ AC250V 5A
|
|
Output type / 输出模式
|
Relay out Com./NO.
|
|
Response time / 反应时间
|
1.5 ms Max.
|
|
Insulation resistance / 隔离阻抗
|
20MΩ min. (DC500V)
|
|
Voltage withstandabiligy / 绝缘耐压
|
AC1000V 60Hz for 60 Sec.
|
|
Operating temperature/工作温度
|
- 20 ℃ ~ + 60 ℃
|
|
Ambient humidity / 工作湿度
|
35% ~ 85% RH
|
|
Protection degree / 防水等级
|
IP65
|
|
Material / 外观材质
|
ABS
|
|

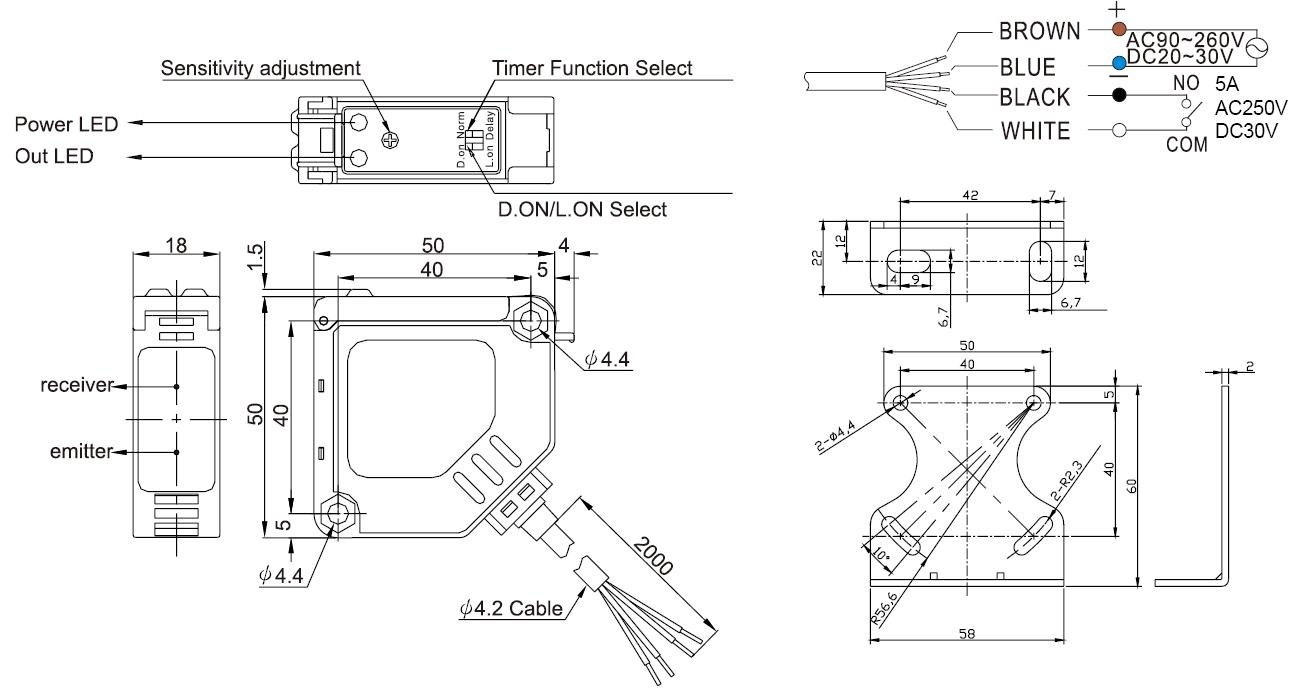

Wiring method / 出线方式
|
Pre-wired O4.2 x 2 M / 4-wires
|
|
Weight /重量
|
Approx. 85g
|
Approx. 85g
|
Approx. 165g
|
二、R3JK-R5A3系列Hot New镜片反射型 光电开关(AC)
|
Model / 型号
|
R3JK-DU100A3
|
R3JK-R5A3
|
R3JK-10A3
|
|
R3JK-DU50A3
|
R3JK-30A3
|
|
Sensing type / 检出方式
|
Diffuse reflection / 扩散反射式
|
Retroreflective / 镜片反射式
|
Through beam / 对照式
|
|
Sensing distance / 检出距离
|
50 cm / 100cm
|
5M
|
10M / 30M
|
|
Emitting light / 发光源
|
Infrared LED 850 nm / Infrared LED 940 nm
|
Infrared LED 940 nm
|
Infrared LED 850 nm
|
|
Operating voltage / 工作电压
|
AC90 ~ 260V DC20~30V
|
|
Current Consumption / 消耗电流
|
25 mA Max.
|
|
Load current / 负载电流
|
Relay：DC30V 5A/ AC250V 5A
|
|
Output type / 输出模式
|
Relay out Com./NO.
|
|
Response time / 反应时间
|
1.5 ms Max.
|
|
Insulation resistance / 隔离阻抗
|
20MΩ min. (DC500V)
|
|
Voltage withstandabiligy / 绝缘耐压
|
AC1000V 60Hz for 60 Sec.
|
|
Operating temperature/工作温度
|
- 20 ℃ ~ + 60 ℃
|
|
Ambient humidity / 工作湿度
|
35% ~ 85% RH
|
|
Protection degree / 防水等级
|
IP65
|
|
Material / 外观材质
|
ABS
|
|
Wiring method / 出线方式
|
Pre-wired O4.2 x 2 M / 4-wires
|
|
Weight /重量
|
Approx. 85g
|
Approx. 85g
|
Approx. 165g
|
三、R3JK-10/30A3系列Hot New对照式 光电开关(AC)
|
Model / 型号
|
R3JK-DU100A3
|
R3JK-R5A3
|
R3JK-10A3
|
|
R3JK-DU50A3
|
R3JK-30A3
|
|
Sensing type / 检出方式
|
Diffuse reflection / 扩散反射式
|
Retroreflective / 镜片反射式
|
Through beam / 对照式
|
|
Sensing distance / 检出距离
|
50 cm / 100cm
|
5M
|
10M / 30M
|
|
Emitting light / 发光源
|
Infrared LED 850 nm / Infrared LED 940 nm
|
Infrared LED 940 nm
|
Infrared LED 850 nm
|
|
Operating voltage / 工作电压
|
AC90 ~ 260V DC20~30V
|
|
Current Consumption / 消耗电流
|
25 mA Max.
|
|
Load current / 负载电流
|
Relay：DC30V 5A/ AC250V 5A
|
|
Output type / 输出模式
|
Relay out Com./NO.
|
|
Response time / 反应时间
|
1.5 ms Max.
|
|
Insulation resistance / 隔离阻抗
|
20MΩ min. (DC500V)
|
|
Voltage withstandabiligy / 绝缘耐压
|
AC1000V 60Hz for 60 Sec.
|
|
Operating temperature/工作温度
|
- 20 ℃ ~ + 60 ℃
|
|
Ambient humidity / 工作湿度
|
35% ~ 85% RH
|
|
Protection degree / 防水等级
|
IP65
|
|
Material / 外观材质
|
ABS
|
|
Wiring method / 出线方式
|
Pre-wired O4.2 x 2 M / 4-wires
|
|
Weight /重量
|
Approx. 85g
|
Approx. 85g
|
Approx. 165g
|
四、R3JK-DU50 / DU100KP2系列Hot New扩散反射型 光电开关
|
Model / 型号
|
R3JK-R5KP2
|
R3JK-DU50KP2K
|
R3JK-10KP2
|
|
R3JK-DU100KP2K
|
R3JK-30KP2
|
|
R3JK-R5KP2K
|
R3JK-DU50KP2K
|
R3JK-10KP2K
|
|
R3JK-DU100KP2
|
R3JK-30KP2K
|
|
Sensing type / 检出方式
|
Retroreflective / 镜片反射式
|
Diffuse reflection / 扩散反射式
|
Through beam / 对照式
|
|
Sensing distance / 检出距离
|
5M
|
50cm / 100cm
|
10M / 30M
|
|
Emitting light / 发光源
|
Infrared LED 940 nm
|
Infrared LED 940 nm
|
Infrared LED 850 nm
|
|
Operating voltage / 工作电压
|
DC12 ~ 24 V
|
|
Current Consumption / 消耗电流
|
30 mA Max.
|
|
Load current / 负载电流
|
100mA Max. at DC24V
|
|
Output type / 输出模式
|
NPN N.O./N.C. PNP N.O./N.C.
|
|
Response time / 反应时间
|
1.5 ms Max.
|
|
Insulation resistance / 隔离阻抗
|
20MΩ min. (DC500V)
|
|
Voltage withstandabiligy / 绝缘耐压
|
AC1000V 60Hz for 60 Sec.
|
|
Operating temperature/工作温度
|
- 20 ℃ ~ + 60 ℃
|
|
Ambient humidity / 工作湿度
|
35% ~ 85% RH
|
|
Protection degree / 防水等级
|
IP65
|
|
Material / 外观材质
|
ABS
|
|
Wiring method / 出线方式
|
R3JK-□KP2
|
Pre-wired O4.2 x 2 M / 4-wires
|
|
R3JK-□KP2K
|
M12 Pigtailed type / M12接头 15cm电线式
|
|
Weight /重量
|
R3JK-□KP2
|
Approx. 80g
|
Approx. 80g
|
Approx. 150g
|
|
R3JK-□KP2K
|
Approx. 45g
|
Approx. 45g
|
Approx. 80g
|
五、R3JK-R5KP2系列Hot New镜片反射型 光电开关
|
Model / 型号
|
R3JK-R5KP2
|
R3JK-DU50KP2K
|
R3JK-10KP2
|
|
R3JK-DU100KP2K
|
R3JK-30KP2
|
|
R3JK-R5KP2K
|
R3JK-DU50KP2K
|
R3JK-10KP2K
|
|
R3JK-DU100KP2
|
R3JK-30KP2K
|
|
Sensing type / 检出方式
|
Retroreflective / 镜片反射式
|
Diffuse reflection / 扩散反射式
|
Through beam / 对照式
|
|
Sensing distance / 检出距离
|
5M
|
50cm / 100cm
|
10M / 30M
|
|
Emitting light / 发光源
|
Infrared LED 940 nm
|
Infrared LED 940 nm
|
Infrared LED 850 nm
|
|
Operating voltage / 工作电压
|
DC12 ~ 24 V
|
|
Current Consumption / 消耗电流
|
30 mA Max.
|
|
Load current / 负载电流
|
100mA Max. at DC24V
|
|
Output type / 输出模式
|
NPN N.O./N.C. PNP N.O./N.C.
|
|
Response time / 反应时间
|
1.5 ms Max.
|
|
Insulation resistance / 隔离阻抗
|
20MΩ min. (DC500V)
|
|
Voltage withstandabiligy / 绝缘耐压
|
AC1000V 60Hz for 60 Sec.
|
|
Operating temperature/工作温度
|
- 20 ℃ ~ + 60 ℃
|
|
Ambient humidity / 工作湿度
|
35% ~ 85% RH
|
|
Protection degree / 防水等级
|
IP65
|
|
Material / 外观材质
|
ABS
|
|
Wiring method / 出线方式
|
R3JK-□KP2
|
Pre-wired O4.2 x 2 M / 4-wires
|
|
R3JK-□KP2K
|
M12 Pigtailed type / M12接头 15cm电线式
|
|
Weight /重量
|
R3JK-□KP2
|
Approx. 80g
|
Approx. 80g
|
Approx. 150g
|
|
R3JK-□KP2K
|
Approx. 45g
|
Approx. 45g
|
Approx. 80g
|
六、R3JK-10/30KP2系列Hot New对照式 光电开关(DC)
|
Model / 型号
|
R3JK-R5KP2
|
R3JK-DU50KP2K
|
R3JK-10KP2
|
|
R3JK-DU100KP2K
|
R3JK-30KP2
|
|
R3JK-R5KP2K
|
R3JK-DU50KP2K
|
R3JK-10KP2K
|
|
R3JK-DU100KP2
|
R3JK-30KP2K
|
|
Sensing type / 检出方式
|
Retroreflective / 镜片反射式
|
Diffuse reflection / 扩散反射式
|
Through beam / 对照式
|
|
Sensing distance / 检出距离
|
5M
|
50cm / 100cm
|
10M / 30M
|
|
Emitting light / 发光源
|
Infrared LED 940 nm
|
Infrared LED 940 nm
|
Infrared LED 850 nm
|
|
Operating voltage / 工作电压
|
DC12 ~ 24 V
|
|
Current Consumption / 消耗电流
|
30 mA Max.
|
|
Load current / 负载电流
|
100mA Max. at DC24V
|
|
Output type / 输出模式
|
NPN N.O./N.C. PNP N.O./N.C.
|
|
Response time / 反应时间
|
1.5 ms Max.
|
|
Insulation resistance / 隔离阻抗
|
20MΩ min. (DC500V)
|
|
Voltage withstandabiligy / 绝缘耐压
|
AC1000V 60Hz for 60 Sec.
|
|
Operating temperature/工作温度
|
- 20 ℃ ~ + 60 ℃
|
|
Ambient humidity / 工作湿度
|
35% ~ 85% RH
|
|
Protection degree / 防水等级
|
IP65
|
|
Material / 外观材质
|
ABS
|
|
Wiring method / 出线方式
|
R3JK-□KP2
|
Pre-wired O4.2 x 2 M / 4-wires
|
|
R3JK-□KP2K
|
M12 Pigtailed type / M12接头 15cm电线式
|
|
Weight /重量
|
R3JK-□KP2
|
Approx. 80g
|
Approx. 80g
|
Approx. 150g
|
|
R3JK-□KP2K
|
Approx. 45g
|
Approx. 45g
|
Approx. 80g
|
七、R3JK-PR2KP2系列Hot New偏光镜片反射型 光电开关
|
Model / 型号
|
R3JK-PR2KP2
|
R3JK-PR2KP2
|
|
Sensing type / 检出方式
|
Polarizing Retroreflective / 偏光镜片反射式
|
|
Sensing distance / 检出距离
|
2M
|
|
Emitting light / 发光源
|
Red LED 650 nm
|
|
Operating voltage / 工作电压
|
DC12 ~ 24 V
|
|
Current Consumption / 消耗电流
|
30 mA Max.
|
|
Load current / 负载电流
|
100mA Max. at DC24V
|
|
Output type / 输出模式
|
NPN N.O./N.C. PNP N.O./N.C.
|
|
Response time / 反应时间
|
1.5 ms Max.
|
|
Insulation resistance / 隔离阻抗
|
20MΩ min. (DC500V)
|
|
Voltage withstandabiligy / 绝缘耐压
|
AC1000V 60Hz for 60 Sec.
|
|
Operating temperature/工作温度
|
- 20 ℃ ~ + 60 ℃
|
|
Ambient humidity / 工作湿度
|
35% ~ 85% RH
|
|
Protection degree / 防水等级
|
IP65
|
|
Material / 外观材质
|
ABS
|
|
Wiring method / 出线方式
|
Pre-wired O4.2 x 2 M / 4-cores
|
M12 Pigtailed type/ M12接头 15cm电线式
|
|
Weight /重量
|
Approx. 80g
|
Approx. 45g
|
八、R3JK-QR2KP2 系列Hot New镜片反射型(红光) 光电开关
|
Model / 型号
|
R3JK-QR2KP2
|
R3JK-QR2KP2
|
|
Sensing type / 检出方式
|
Retroreflective(RED) / 镜片反射式(红光)
|
|
Sensing distance / 检出距离
|
2M
|
|
Emitting light / 发光源
|
Red LED 650 nm
|
|
Operating voltage / 工作电压
|
DC12 ~ 24 V
|
|
Current Consumption / 消耗电流
|
30 mA Max.
|
|
Load current / 负载电流
|
100mA Max. at DC24V
|
|
Output type / 输出模式
|
NPN N.O./N.C. PNP N.O./N.C.
|
|
Response time / 反应时间
|
1.5 ms Max.
|
|
Insulation resistance / 隔离阻抗
|
20MΩ min. (DC500V)
|
|
Voltage withstandabiligy / 绝缘耐压
|
AC1000V 60Hz for 60 Sec.
|
|
Operating temperature/工作温度
|
- 20 ℃ ~ + 60 ℃
|
|
Ambient humidity / 工作湿度
|
35% ~ 85% RH
|
|
Protection degree / 防水等级
|
IP65
|
|
Material / 外观材质
|
ABS
|
|
Wiring method / 出线方式
|
Pre-wired O4.2 x 2 M / 4-cores
|
M12 Pigtailed type/ M12接头 15cm电线式
|
|
Weight /重量
|
Approx. 80g
|
Approx. 45g
|
|
●Detecting box passing. /检测纸盒通过
|
|
