Output mothod 输出模式

出线式

BR2-N

BR2-P

端子式

BR2-NB

BR2-PB

Emitting element/发光源

Red LED 660 nm

Operating voltage/工作电压

DC12~24V ± 10%

Current Consumption/消耗电流

45mA Max.

Load current / 负载电流

100mA Max.at DC24V

Output Type / 输出模式

NPN L.on / D.on

PNP L.on / D.on

Protection circuit / 保护电路

Reversed polarity protection, over-current protection

Response time/反应时间

on 1 ms, off 1 ms

Indicators/指示灯

Output indicator ：Red LED

Sensitivity adjusrment/灵敏度功能

3 Digitals 000-999

Insulation resistance/隔离阻抗

20M V min. (DC500V)

Voltage Withstandability/绝缘耐压

AC500V 60Hz for 60 Sec.

Operation temperature/工作温度

+10℃~+60℃

Ambient humidity/工作湿度

35%~85% RH

Protection degree/防水等级

IP64

Material/外观材质

ABS

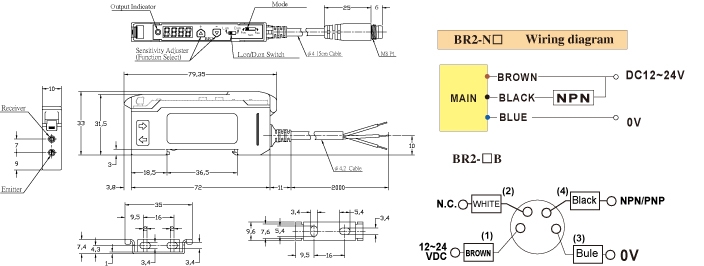

Wiring method
/ 出线方式

BR2-□

Pre-wired Ø4.2 x 2 M / 3-wires

BR2-□ B

M8 pigtailed type / M8 接头15cm电线式

Weight / 重量

BR2-□

Approx. 63 g

BR2-□ B

Approx. 70 g
