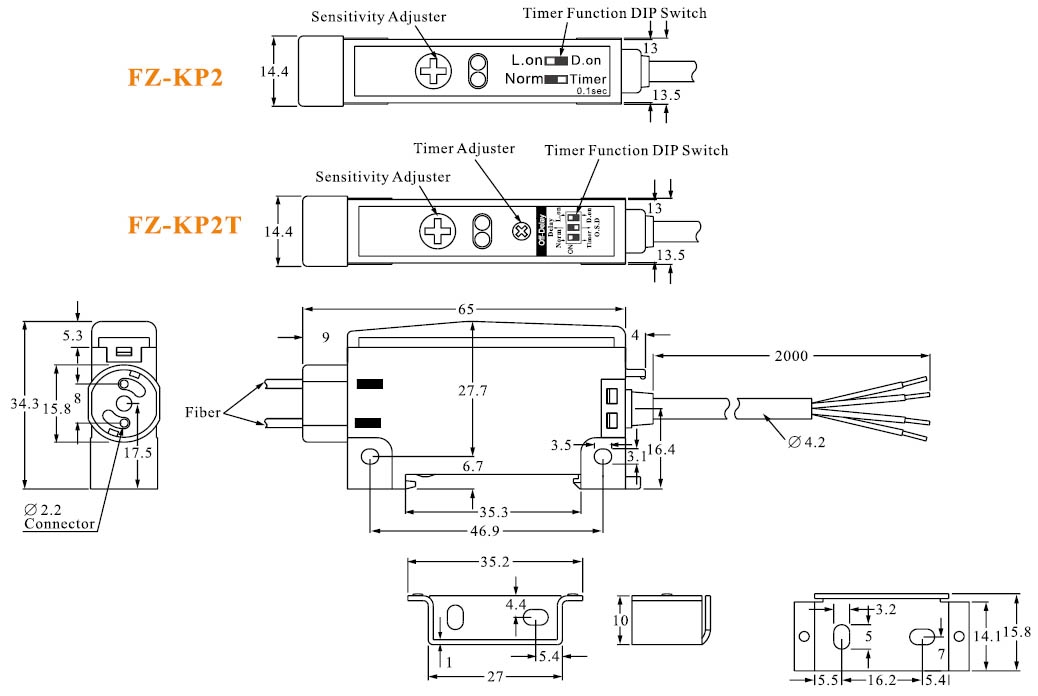

Model / 型号

FZ-KP2

FZ-KP2T

Emitting element/发光源

Red LED 680 nm

Red LED 680 nm

Operating voltage/工作电压

DC12~24V ± 10%

Current Consumption/消耗电流

35mA Max.

40mA Max.

Load current / 负载电流

100mA Max at DC 24V in, Residual voltage :1V Max

Output Type / 输出模式

NPN N.O. / N.C. PNP N.O./N.C.

Protection circuit / 保护电路

Reversed polarity protection, over-current protection, surge absorber

Response time/反应时间

0.5 ms

1 ms

Indicators/指示灯

Output indicator ：Red LED, Power indicator：Green LED

Sensitivity adjusrment/灵敏度功能

4 turns trimmer

Timer function / 定时器功能

–

One shot / Off-delay / 0~7 sec.

Protection degree/防水等级

IP64

Material/外观材质

ABS

Wiring method / 出线方式

Pre-wired Ø4.2 x 2M / 4-wires

Weight /重量

Approx.85 g
